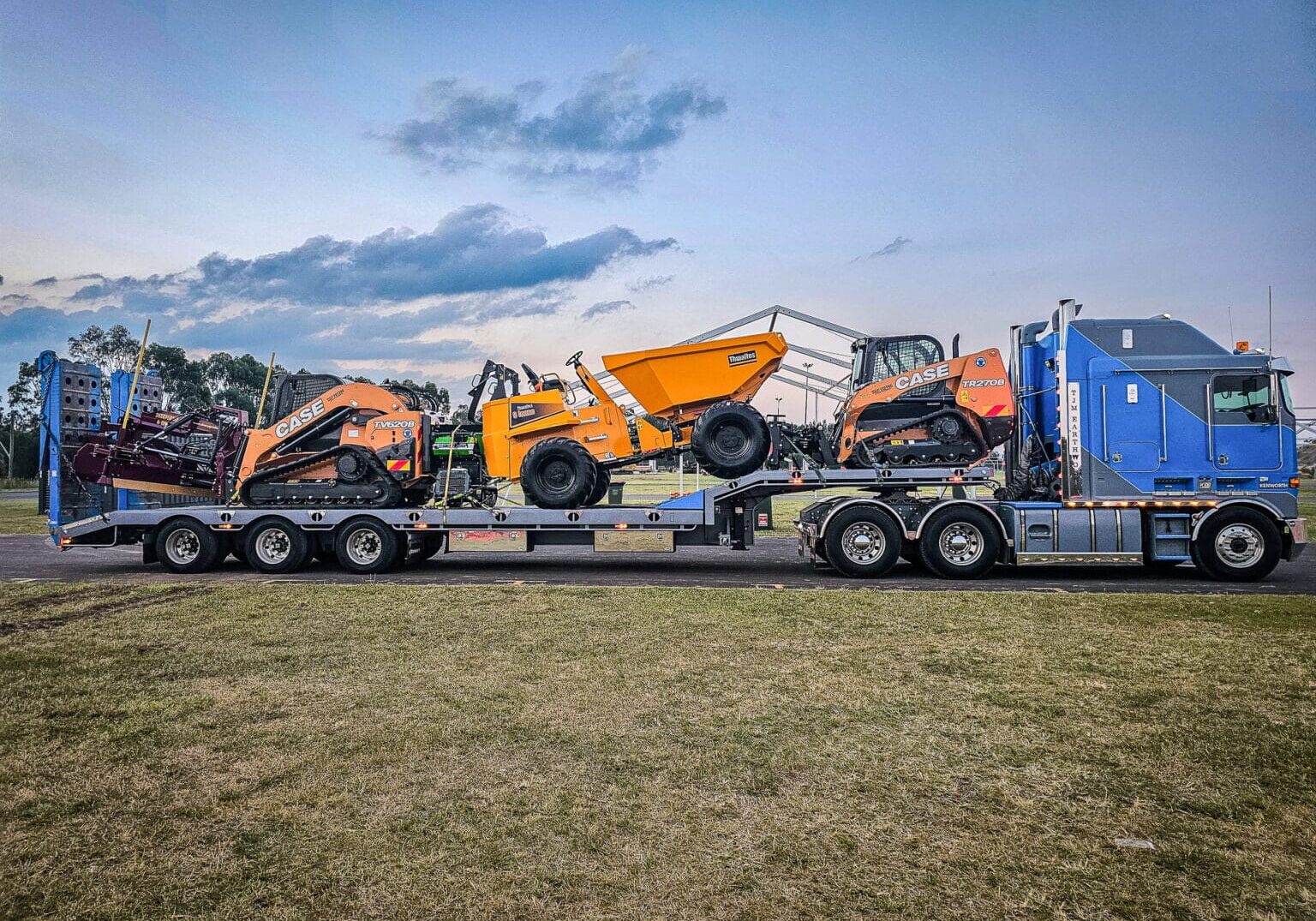

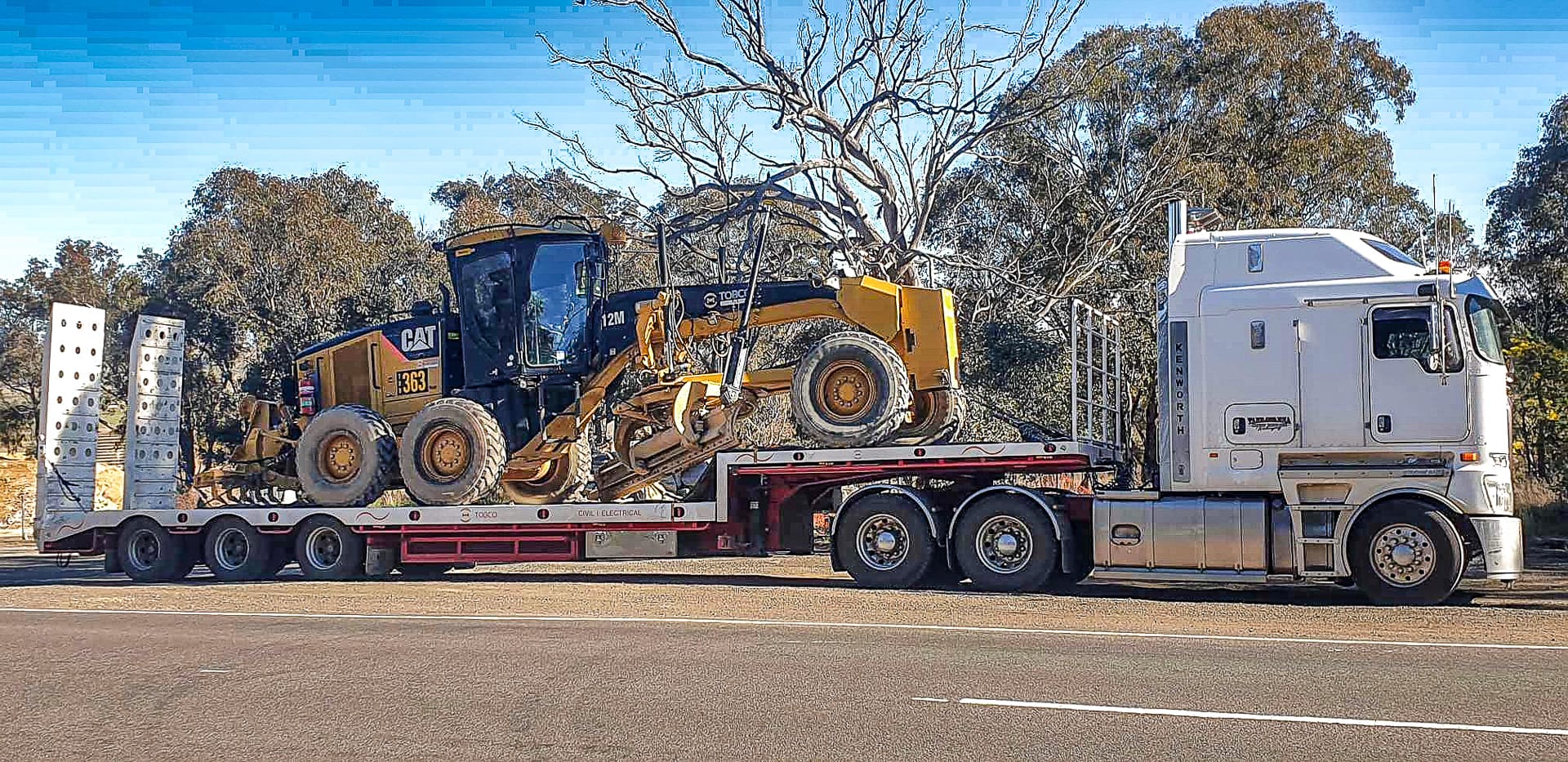

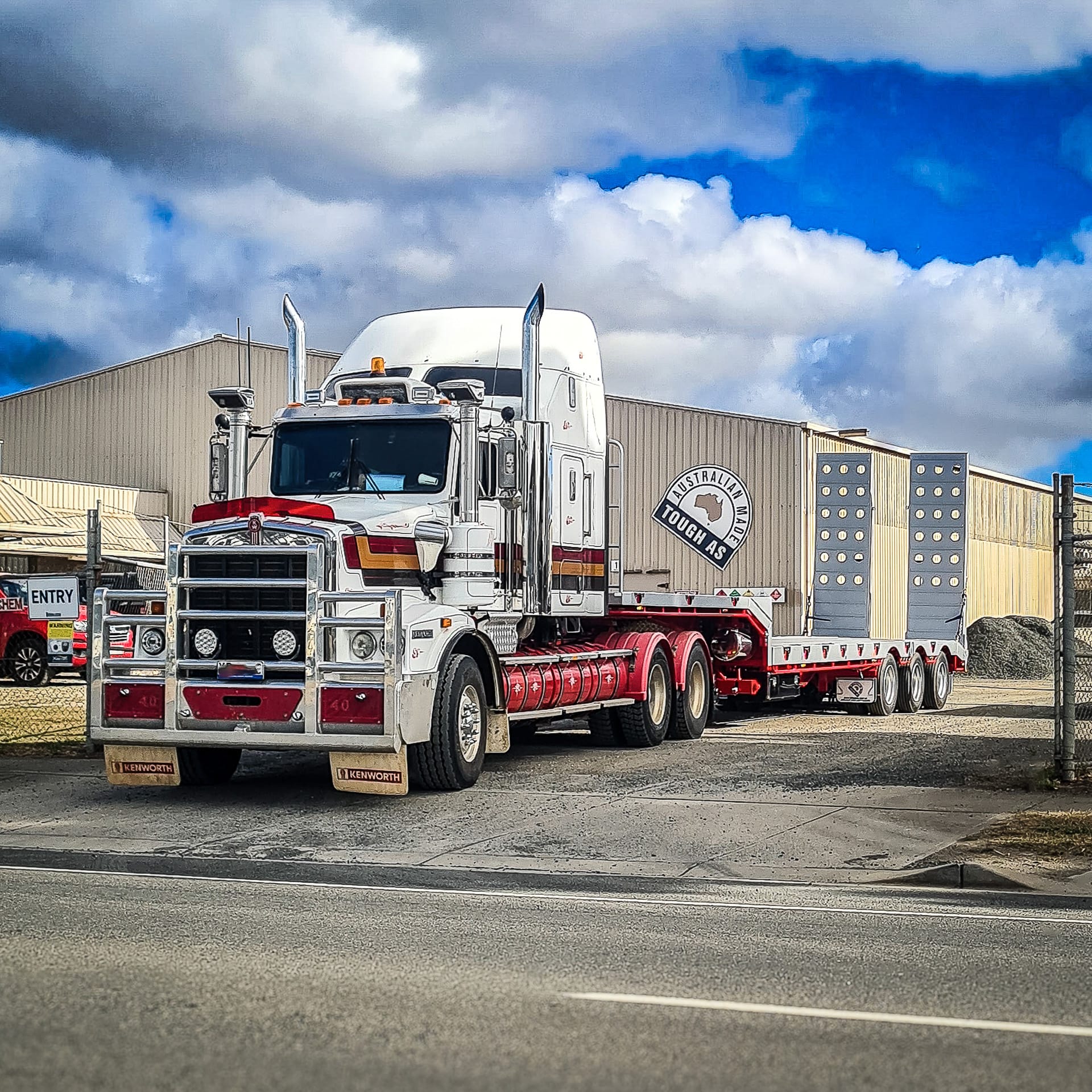

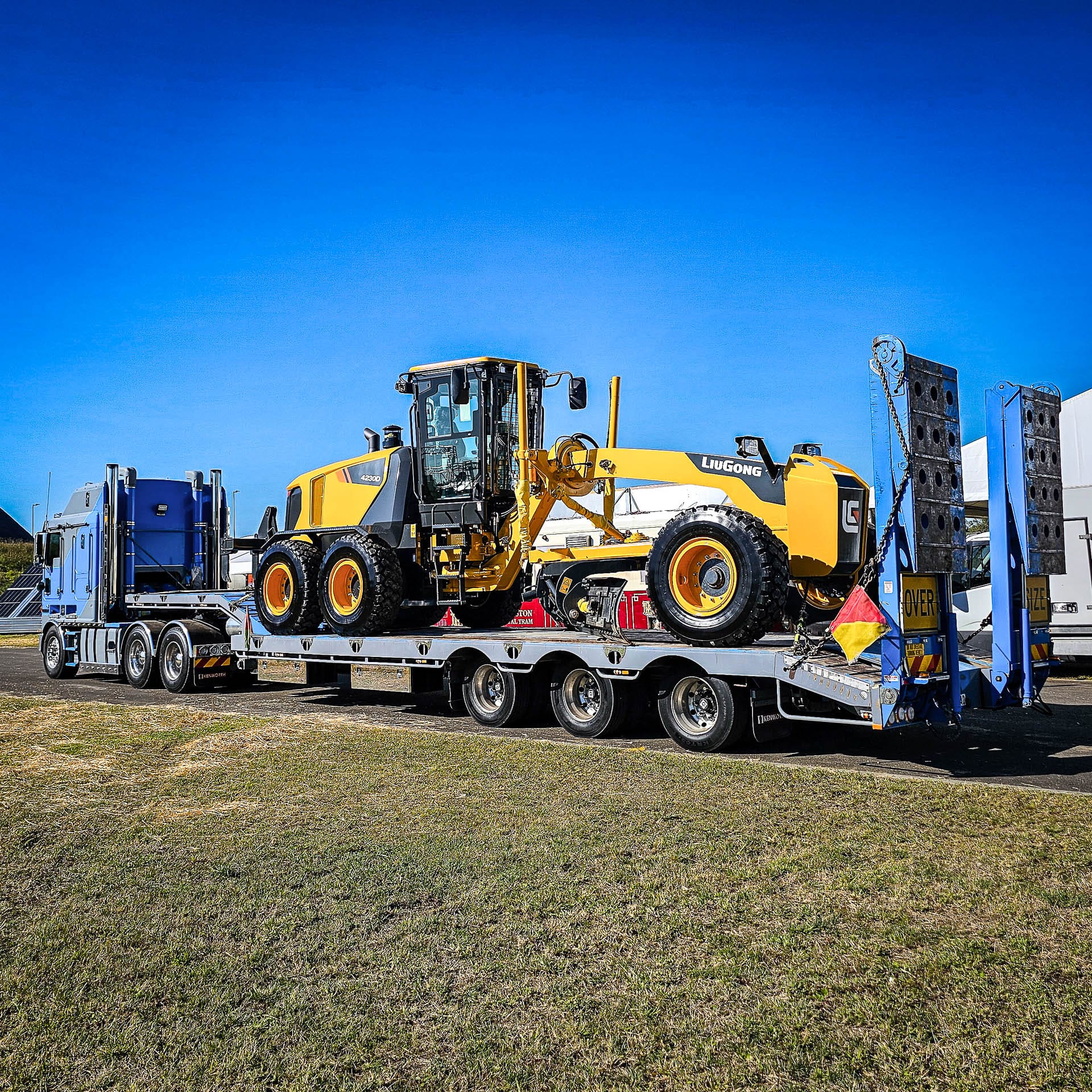

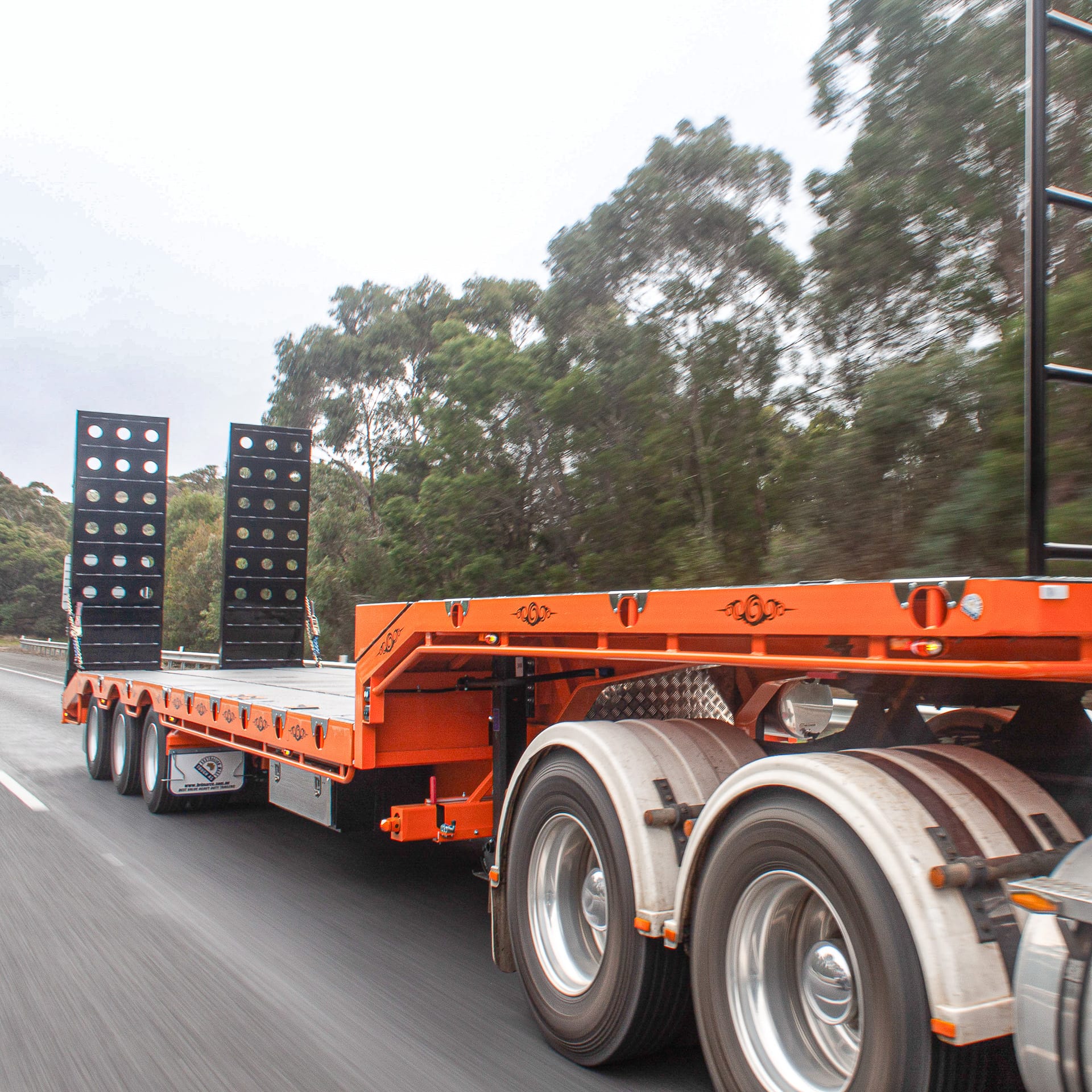

3.5m Tri-Axle
Drop Deck Widener Trailer
Australian Made Strength with a 5-year Structural Warranty
Every 3.5m widener is manufactured in Ballarat using high strength steels and local suppliers and services. We back your trailer with a 5-year structural warranty and an industry-leading lead time as low as 8 weeks.
Exceptional Reliability
Ultimate Versatility
Low Deck Height
Go Stronger. Go Brimarco Trailers.
Brimarco’s Drop Deck Widener Trailers are Australian designed and manufactured solutions engineered for heavy haulage across demanding conditions. Built in Ballarat, Victoria, these high-performance drop deck widener trailers deliver exceptional strength, durability and versatility—making them ideal for transporting oversized and over-width loads across agriculture, civil and transport industries.
With flexible deck widening from 2.5 to 3.5 metres a low deck height under one metre and a heavy-duty construction built to last, each trailer is designed to maximise payload capability while maintaining stability and compliance. Backed by a five-year structural warranty and industry-leading lead times as short as 8 weeks, Brimarco offers a reliable, cost-effective alternative to traditional low loader trailers—built tough for Australian operators who demand performance.
Specifications
| Feature Name | Feature Info |
|---|---|
| Payload | 25t at full width |
| ATM | 44,000 kg |
| GTM | 25,000 kg |
| Deck Width | 2.5m – 3.5m |
| Deck Height | 0.975 m |
| Deck Lengths | 13.3m (45ft model), 13.7m (46ft model), 14.3m (48ft model) |
| Overall Lengths | 13.65m (45ft road train compliant), 14m (46ft), 14.6m (48ft); custom lengths available on request |
| Axle Config | Tri-Axle |
| Availability | Made to order, call to check ex-rental/stock units |
| Est. Lead Time | 8 Weeks (dependent on current production schedule) |
| Australian Designed and Built | Designed, engineered and manufactured in Ballarat Victoria. Proudly Australian Made. |
| Main Rails | 350 grade webs and flanges; 20mm lower flange, 16mm upper flange |
| Coaming Rails | 200mm and 125mm PFC with 22 chain bars |
| Flooring | 5mm 700G on decks and ramps with 31 in-deck tie down points |
| Chain Points | 31 in-deck tie-down points; 22 coaming chain bars |
| Tyre Carrier | Tyre carrier suited for 19.5” spares |
| Front Gate | 1600mm high heavy-duty gate |

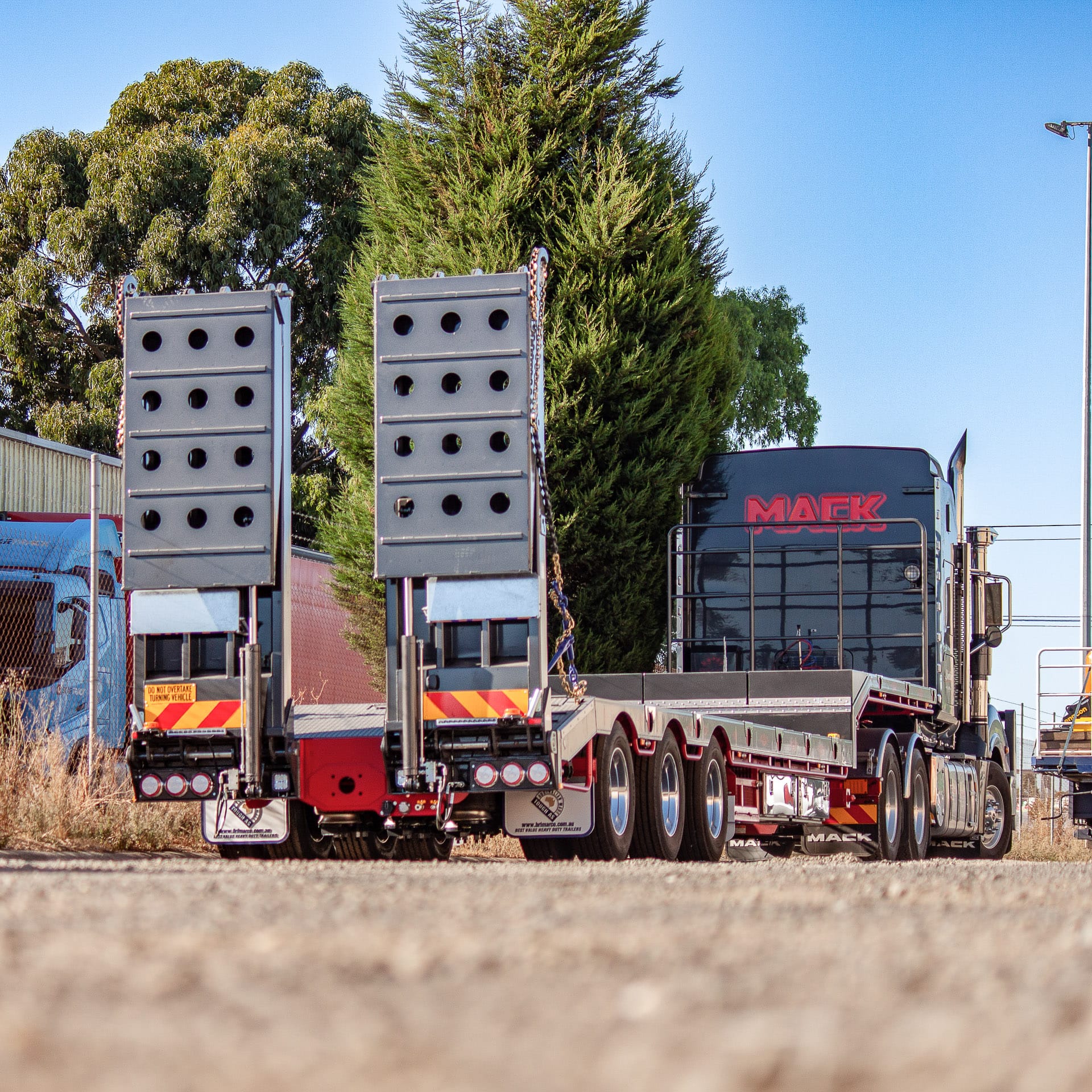

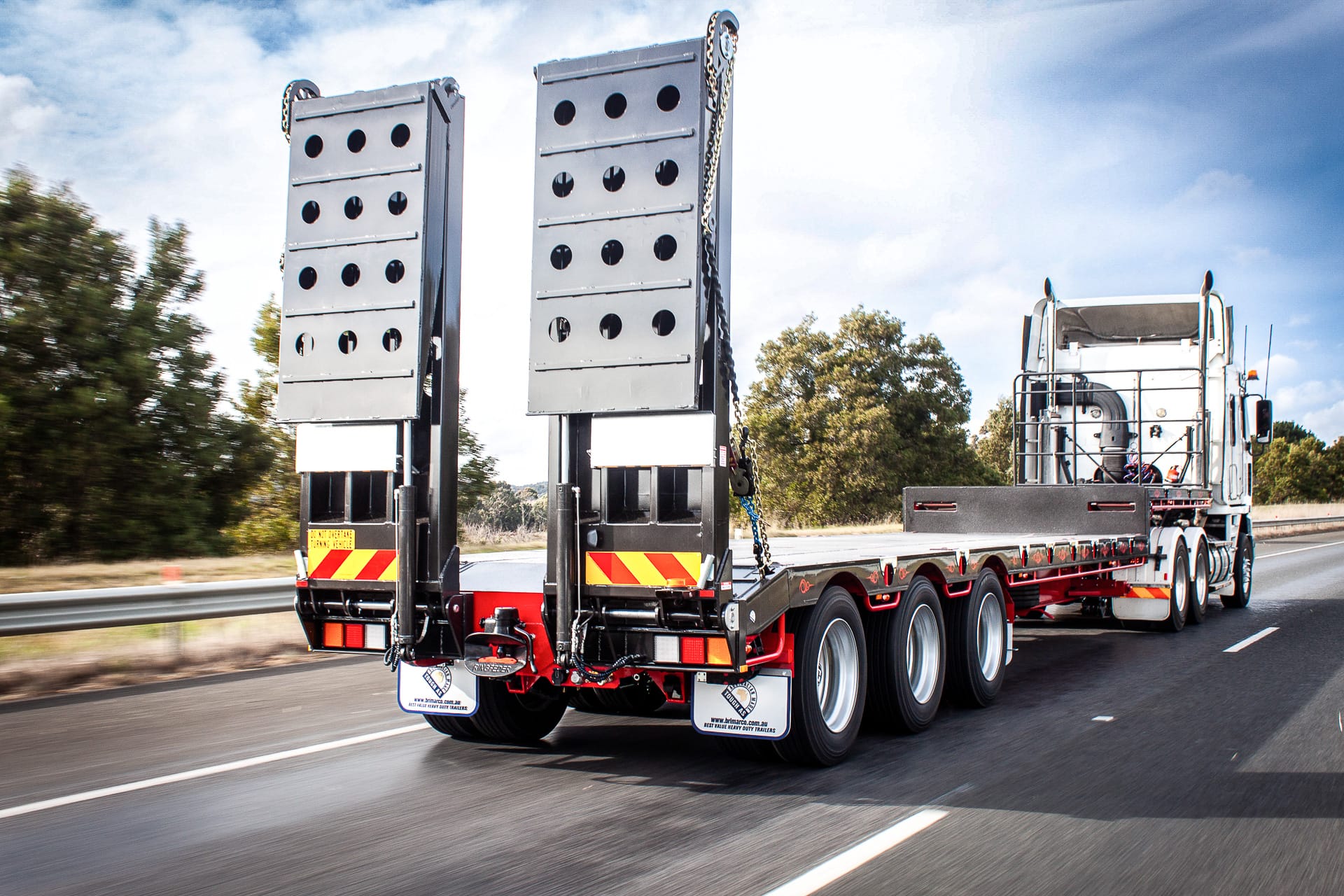

| Rear Ramps | Heavy-duty ramps; 2950mm x 900mm box tube with a 5mm 700 grade steel plate surface and welded grip strips |
| Upper Ramps | Aluminium 3-piece flip-over |
| Paint | Fully sandblasted, primed, and finished in two high quality 2-pack paint, with a choice of colours |
| Suspension | Fuwa K Hitch mechanical tri-axle suspension with 19.5” 8 stud hubs |
| Hydraulics | Dual acting heavy-duty 3” cylinders fit with premium valves and 12V power pack |
| Landing Gear | 2 Speed Fuwa K Hitch landing legs |
| Wheels | Steel painted rims with 265/70 19.5” tyres |
| Electrics | 175A Anderson plug, 12V lead acid battery, multi-volt LED lighting with beacon |
| Toolbox | Powder coated lockable toolbox with stainless door (1200mm x 350mm x 400mm) |
| Water Tank | Polished 60L aluminium water tank |
| Oversize Signage | Custom spring-loaded flip-over signs |
| Flag Holders | Front and rear flag holders |
Aggregate Trailer Mass (ATM) is the total maximum weight of a trailer when unhitched, including its payload. Gross Trailer Mass (GTM) is the maximum weight supported by the trailer’s axles when hitched to a vehicle.
Optional Trailer Features
Resources & Downloads
Brimarco-Tough-As-3.5m-Ultra-Low-Drop Deck Widener Spec Sheet |
Dimensions
Note: All dimensions are listed in metres (m)
†Top deck length includes flip over ramp in position shown. For custom lengths or other special requirements please contact Brimarco directly. ^Payload refers to engineered structural capacity. On-road limits depend on local regulations and vehicle configuration. *5 Year Warranty applies to structural defects only.
Frequently Asked Questions
What is a drop deck widener trailer used for?
How wide can a drop deck widener trailer expand?
How long does it take to build a Brimarco drop deck widener trailer?
Where are Brimarco drop deck widener trailers built?
What are the benefits of a drop deck widener over a low loader?
