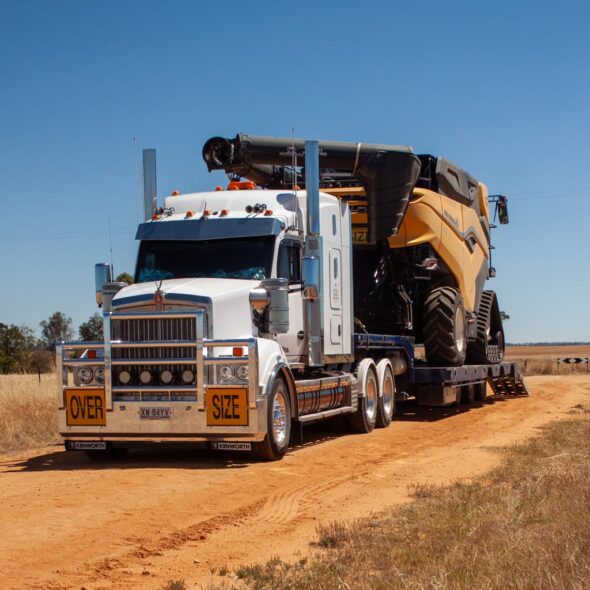

4m Ultra Tri Widener Trailer

Australian-made tri axle drop deck 4m widener with up to 31t payload

The Tri-Axle for Flagship Headers & Machinery

The 4m Ultra Tri is built to meet the transport demands of modern machinery, including:

• 31t machines with 50:50 axle weight at all trailer widths
• 31t machines with 60:40 axle weight split up to 3m trailer width, and 27t at full 4m width
• 31t excavators at all trailer widths
• Fully rated for all common Broadacre machinery.

The reinforced deck structure, 700 grade floor, and heavy-duty main rails allow operators to load safely and reliability.

We are now taking pre-orders to lock in build slots. Contact us to enquire today.

Deck Height: 995mm approx.

ATM: 44,000kg

GTM: 27,000kg

Main Rails

• Full length heavy duty main rail
• 350 grade webs with an 8mm camber
• 350 grade flanges – up to 25mm thick

Coaming Rails

• 250mm and 125mm PFC with 18 chain bars

Flooring

• 5mm 700G on decks and ramps with 31 in-deck tie down points

Tyre Carrier

• Tyre carrier suited for 19.5” spares only

Front Gate

• 1600mm high heavy-duty gate.

Rear Ramps

• Heavy-duty chain actuated bi-fold ramps
• 4200mm x 900mm box tube with a 5mm 700 grade steel plate surface and welded grip strips

Upper Ramps

• Aluminium 3 piece flip-over.

Paint

• Fully sandblasted, primed, and finished in two high quality 2-pack paint colours

Suspension

• Fuwa K Hitch airbag tri-axle suspension with 19.5” 8 stud hubs.

Hydraulics

• Dual acting heavy-duty 3” cylinders fit with premium valves and 12V power pack

Landing Gear

• 2 Speed Fuwa K Hitch landing legs

Wheels

• Steel Painted rims with 265/70 19.5” tyres

Electrics

• 175A Anderson plug, 12V lead acid battery, multi-volt LED lighting with beacon

Toolbox

• Powder coated lockable toolbox with stainless door. (1200mm x 350mm x 400mm)

Water Tank

• Polished 60 litre aluminium water tank

Oversize Signage

• Custom spring-loaded flip-over signs

Flag Holders

• Front and rear flag holders
